Understanding K Factor in Vessel Design: A Key Parameter for Efficient Separation

Hi

Vessels serve as critical equipment in any plant for two main reasons: they separate liquids from gases and provide adequate surge time for operational stability. In my previous article, "How Two Phase and Three Phase Separators Work," I covered various aspects of vessels.

Today, I want to focus on one crucial element of separator sizing: the K factor. Also known as gas handling capacity, this key parameter determines the maximum allowable gas velocity within a separator.

To calculate the K factor, we must first determine the maximum allowable liquid droplet size that can be entrained with gas. Smaller droplet sizes result in better separation. The K factor depends on both the specified maximum droplet size and the drag coefficient.

The required K factor varies based on service conditions and separation requirements:

• When outlet gas flows directly to a compressor, a smaller droplet size (lower K factor) is necessary
• When gas proceeds to another separation equipment (like a distillation column), larger droplet sizes may be acceptable

Design criteria typically either specify:

• The maximum droplet size (used to calculate the K factor), or
• The required K factor directly (used to calculate maximum velocity)

Typical K factor ranges vary by separator orientation:

• Vertical separators: 0.12 to 0.35 ft/s
• Horizontal separators: 0.4 to 0.5 ft/s

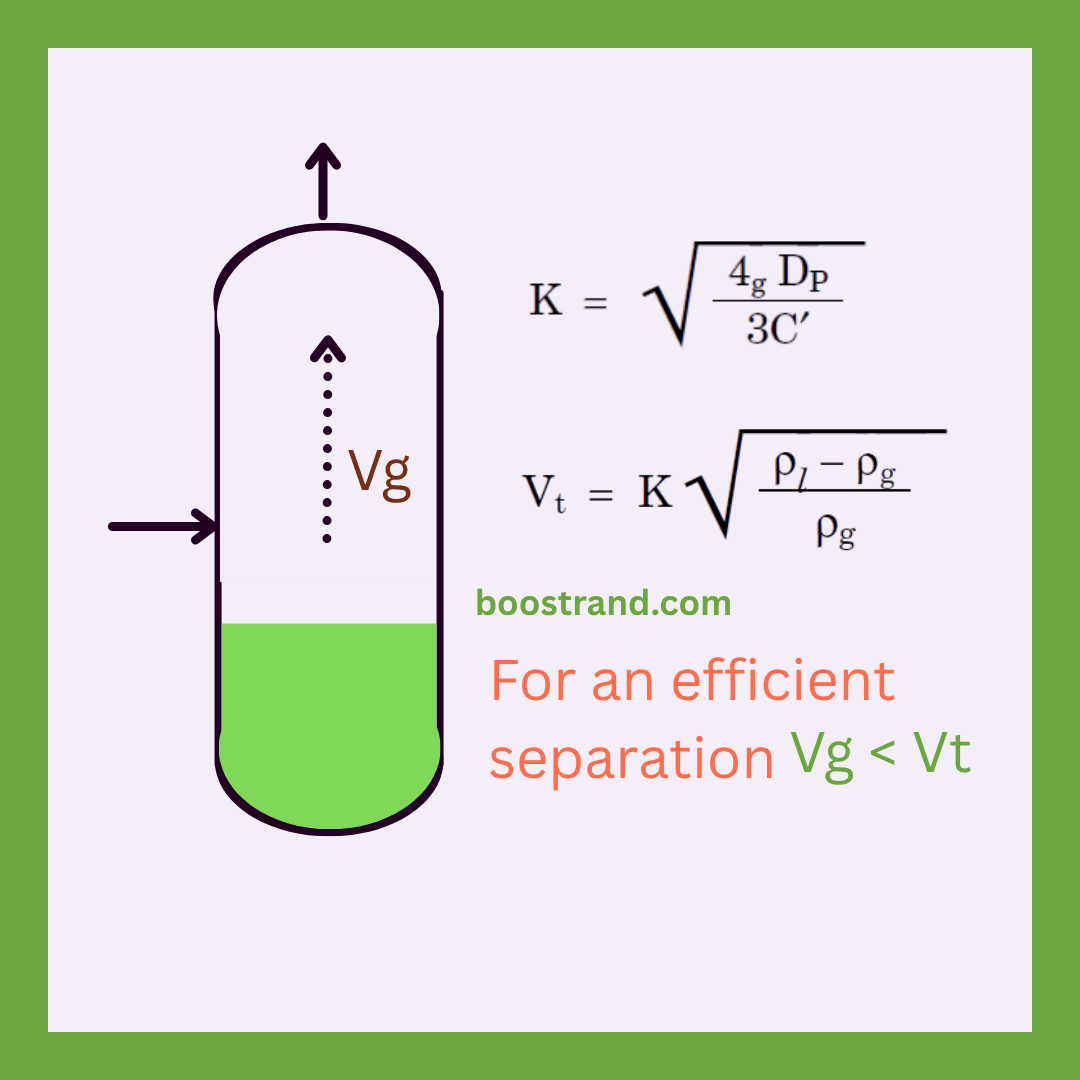

For effective separation, the vessel diameter must lead to a gas velocity below the maximum allowable velocity determined by the K factor.

Internal components like mist eliminators and vane packs significantly impact the K factor. These devices catch entrained liquid, allowing for higher K factors and gas velocities. This can reduce the required vessel diameter and overall cost.

If you have any questions, please reply to this email.

For more insights on vessels and separators, you can revisit my article "How Two Phase and Three Phase Separators Work."
